Available as a static or removable HVM bollard, the SafetyFlex Truckstopper 7-40 has a foundation depth of just 200mm, making it one of the most shallow-mounted, impact tested HVM bollard systems available.
Shallow foundation enable cost-effective installation of this HVM system, as compared to traditional bollard systems, making the Truckstopper 7-40 a simple and effective anti-terrorist bollard solutions for permanent HVM protection.
Unlike traditional steel tube bollards, the Truckstopper 7-40 HVM bollard utilises a patented sprung design, resulting in a durable, ultra slimline steel bollard that complements a wide range of environments.
Dimensions
Tested core dimensions:
100mm W x 190mm L x 900mm H from FFL
Shroud measurements:
134mm X 250mm as standard
Bollard spacing:
1300mm centres, 1200mm spacing between tested cores
Height above ground:
900mm
Foundation depth:
200mm
Certification
BSI PAS68:2010: V/7500/ N2/48/90/2.8/0.0
Installation
The highly versatile Truckstopper 7-40 can be fitted as a standalone HVM solution in a range of environments, including locations with complex ground contours and inclines.
The Truckstopper HVM system has been impact tested as a single unit, so it can be installed as a standalone HVM bollard solution, as well as in an array. Its shallow foundations makes this HVM system faster and simpler to install, delivering a cost-effective solution and minimal disruption while offering reliable HVM protection.
Performance
The Truckstopper 7-40 has been crash-tested with a 7.5 tonne truck at 40mph at both 90 and 45 degrees, and is suitable as a either a permanent or semi-permanent removable HVM bollard unit.

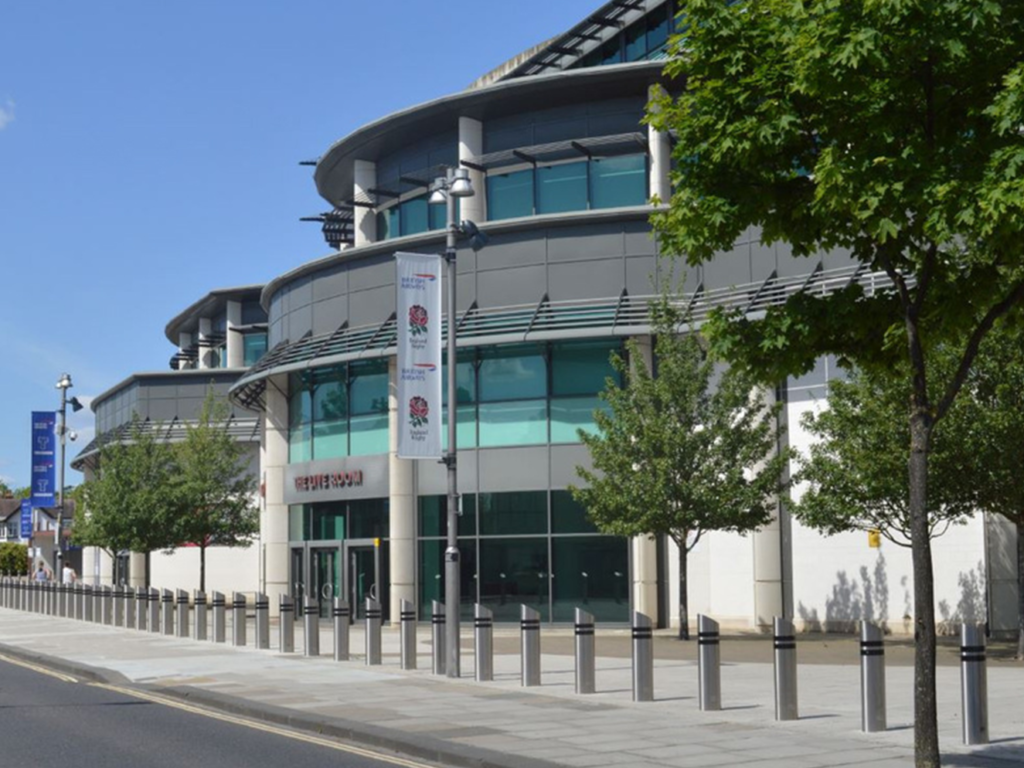

Designed to blend seamlessly into the public realm, the Truckstopper 7-40 is available in a variety of round, oval, or rectangular shrouds and a choice of colours, complementing virtually any surroundings. The oval 316 stainless steel mitred top cover incorporates two hi-vis bands as standard, with alternative options also available.
Contact us to discuss Truckstopper 7-40 specification and installation
