A versatile rising HVM bollard system, our SafetyFlex RB001-30 is a hostile vehicle mitigation solution that can be fitted as a standalone bollard or in an array, providing a scalable option for any environment.

A permanent HVM system, which can be lowered to enable access for emergency services, authorised vehicles or deliveries, our RB001-30 rising bollards are elegant and slimline, while offering robust HVM protection that is cost-effective to install and maintain.

Each manually-powered HVM bollard is operated using a patented and reliable steel mechanism, and we can tailor your installation to meet your preferences and the specific environment, with multiple finishes and colours available to blend in seamlessly in any location, from a corporate office through to a public realm space.

Dimensions

Rated core dimensions:
100mm W x 200mm L x 850mm H from FFL

Footprint measurements:
1000mm W x 2200mm L X 450mm with 50mm bedding D

Shroud measurements:
134mm W x 250mm D x 1000m (from FFL as standard)

Bollard spacing:
1300m centres, 1200mm spacing between rated cores

Certification

PAS68:2010: V/7500[N2]/48/90:3.2/0.0

PAS 68:2010: V/7500[N2]/48/45:2.6/2.2

RB001-30 HVM Bollard Installation

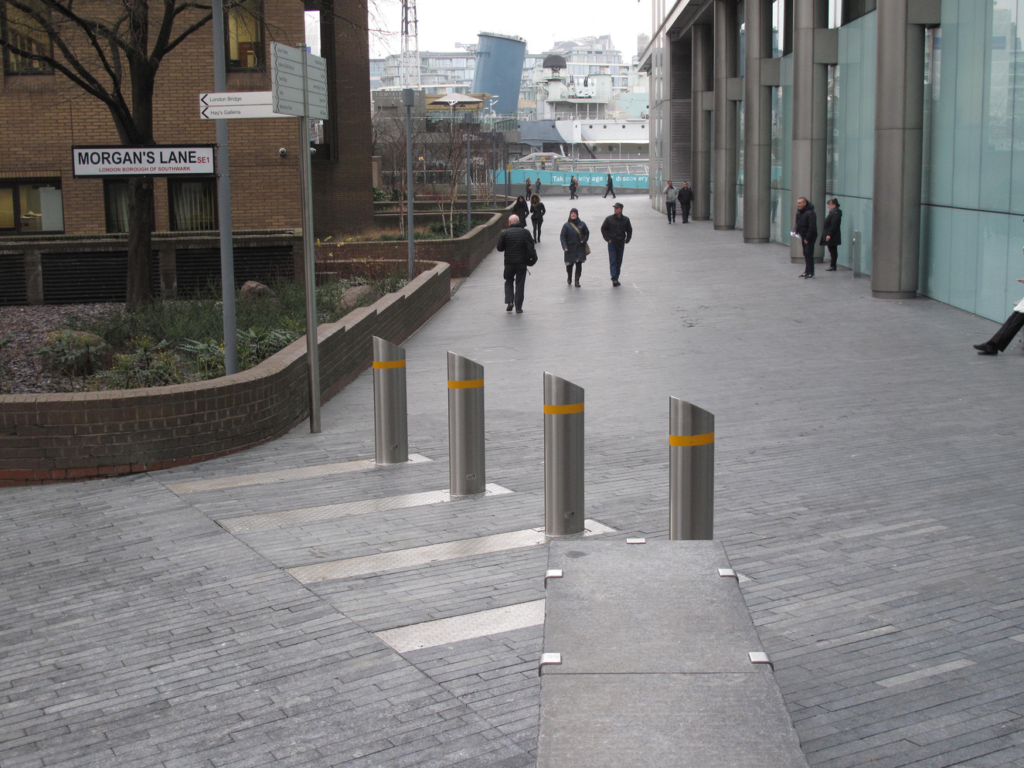

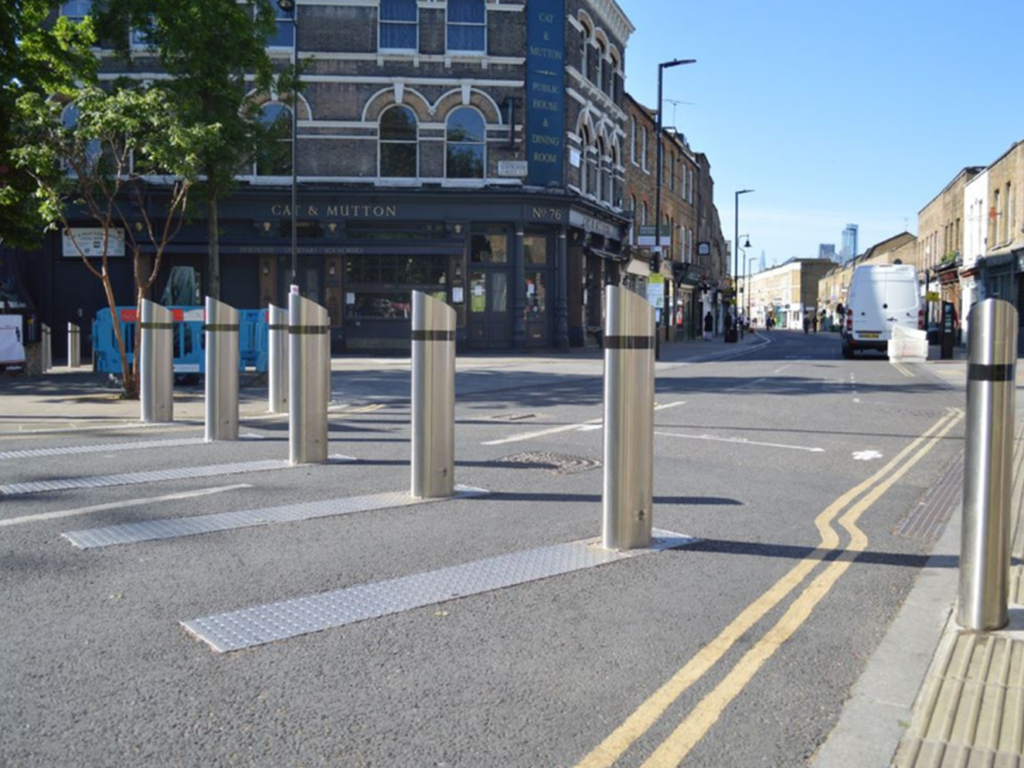

Our RB001-30 HVM rising bollard is a slimline HVM unit that requires no mains power because it is operated using an 18v cordless drill. The innovative RB001-30 design ensures we can fit the HVM bollards to follow the contours of the ground at the installation site, resulting in a neat installation that looks smart and stylish, as well as offering effective protection from hostile vehicle threats and unauthorised vehicles.

RB001-30 HVM Bollard Performance

The RB001-30 HVM bollard system has been crash-tested and is rated to withstand impacts from vehicles of up to 7.5 tonnes travelling at up to 48kph. This makes it an ideal permanent HVM system for urban landscapes and the public realm, as well as high footfall locations such as shopping centres, leisure attractions and airports.

The steel mechanism and power-free operation ensure that RB001-30 HVM bollards are low maintenance throughout their service life and the units can be repaired quickly and easily if they are damaged due to a vehicle impact.

Contact us to discuss RB001-30 specification and installation.
